SYNC 6-Light Sequential Arrow Light Kit — Carry Case

  • Product Item HL76901B-SY
  • 6 Magnetic Arrow Lights + Carry Case
  • Sync: Auto-Pairing, Whole-Set Control
  • Modes: Chasing / Fast Flash / Slow Flash / Steady
  • Battery: 3.7V 4000mAh per light | Cone Mount Hooks
Inquiry Send Email

Description

Product Highlights

  • ✔Kit of 6 magnetic LED arrow lights in one carry case, with 6 mounting hooks and an AC charger
  • ✔Automatic pairing: lights pair themselves in about 2 minutes, then one button controls the whole set
  • ✔4 modes: Chasing / Fast Flash / Slow Flash / Steady, with 32 LEDs and 16W per light
  • ✔Chasing units of 6: add more lights and the 7th starts a new chasing unit
  • ✔3.7V 4000mAh rechargeable battery in every light, DC 5V charging (red while charging, blue when full)
  • ✔Magnetic attachment hook fits each arrow light onto a traffic cone

Sourcing Synchronized LED Arrow Light Kits for Wholesale or OEM Private Label?

We are a factory-direct manufacturer supplying distributors, road safety equipment suppliers and fleet operators. The SYNC arrow light kit pairs six rechargeable LED arrow lights so that one button controls the whole set, with a chasing mode for directional guidance, magnetic cone mounting and a carry case, plus OEM/ODM customization for your brand.

6 lights
In one carry case
Auto-sync
One button, whole set
4 modes
Chasing, Fast, Slow, Steady
16W
32 LEDs per light
4000mAh
Battery in every light
OEM/ODM
Available

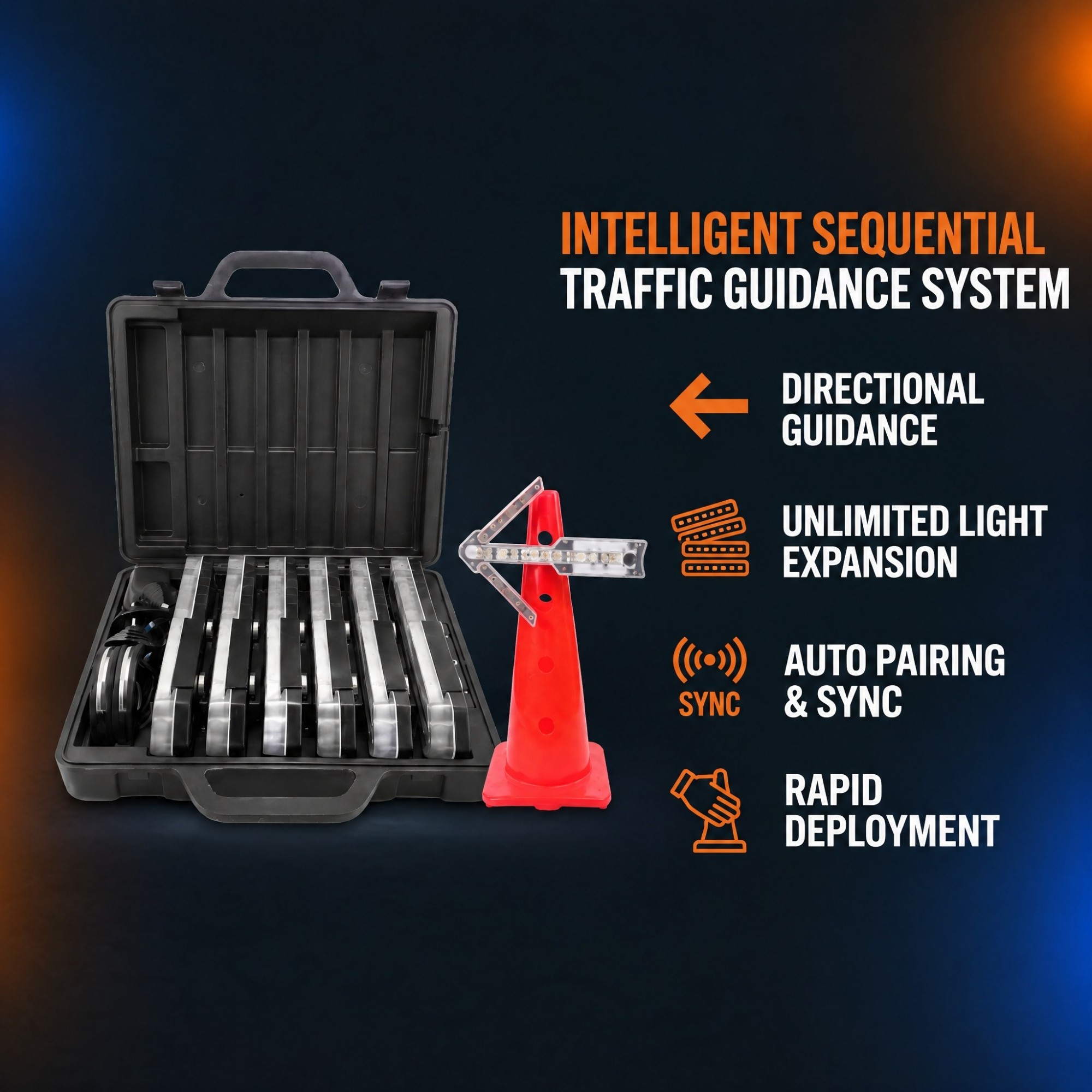

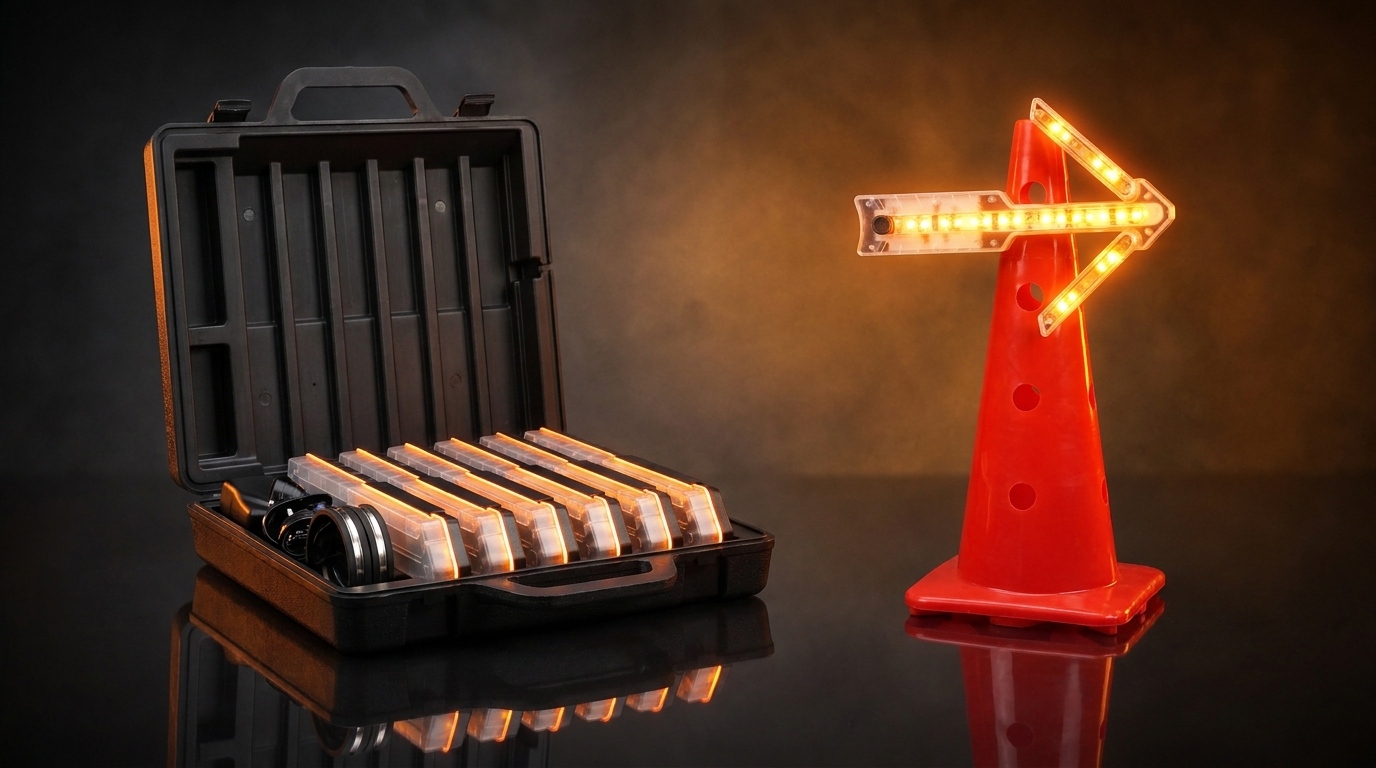

SYNC arrow light kit: carry case with six LED arrow lights and one arrow light mounted on a traffic cone

Product Description – SYNC Sequential Arrow Light Kit

Power On, Auto-Pair, Run the Whole Set From One Button
Each light registers its position in the sync order as it is powered on. After pairing, a short press on any light starts the entire set in sync, and another press changes the flash mode for every light at once.
One Kit, Six Arrow Lights. The carry case holds six 290 × 80 × 35 mm arrow lights, six mounting hooks and a charger, so a full set travels and stores together.
Automatic Pairing. Hold the button on each light for 4–5 seconds to power it on. The lights then enter pairing mode automatically, which takes about 2 minutes. All lights flash off briefly at the same time to confirm that pairing is finished.
Whole-Set Control. Briefly press any single light to turn the entire set on in sync. Press again to switch the flash mode for the whole group. Press to switch off and the set enters standby, then powers off completely after 1 minute without action.
Four Lighting Modes. Chasing, Fast Flash, Slow Flash and Steady, applied to every light in the set at the same time.
Chasing Units and Expansion. In Chasing mode every 6 lights form one chasing unit, and the 7th light starts a new unit (Group 2). In Fast Flash, Slow Flash and Steady, all connected lights run as one synchronized group with no limit on the number of lights.
Magnetic Cone Mount. A magnetic attachment hook clips onto the magnets on each arrow light and fits it onto a traffic cone. Six mounting hooks are included.
32-LED, 16W Arrow Head. Each light has 32 LEDs with 16W output in a 500 g, ABS + PC body.
Rechargeable in Every Light. Each light has its own 3.7V 4000mAh lithium battery and charges through DC 5V input. An AC wall charger is included and a DC car charger is available as an optional accessory.

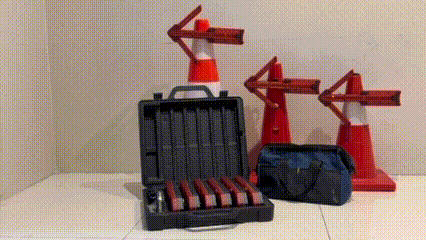

SYNC intelligent sequential traffic guidance system: directional guidance, unlimited light expansion, auto pairing and sync, rapid deployment

How It Works

1. Power on each light
Press and hold the button on each light for 4–5 seconds. Each light registers its position in the sync order based on the order it was powered on.
2. Automatic pairing
Once all lights are on, they enter pairing mode automatically. It takes about 2 minutes, and all lights flash off together when pairing is complete.
3. Start the set
Press any light briefly to run the whole set in sync. If no button is pressed within 1 minute after pairing, the set powers off.
4. Change the mode
Press any light again to switch the flash mode for the entire set. Press to go to OFF, and the set powers off after 1 minute of standby.

The sync order resets when the lights are powered off and is re-established the next time the set is powered on.

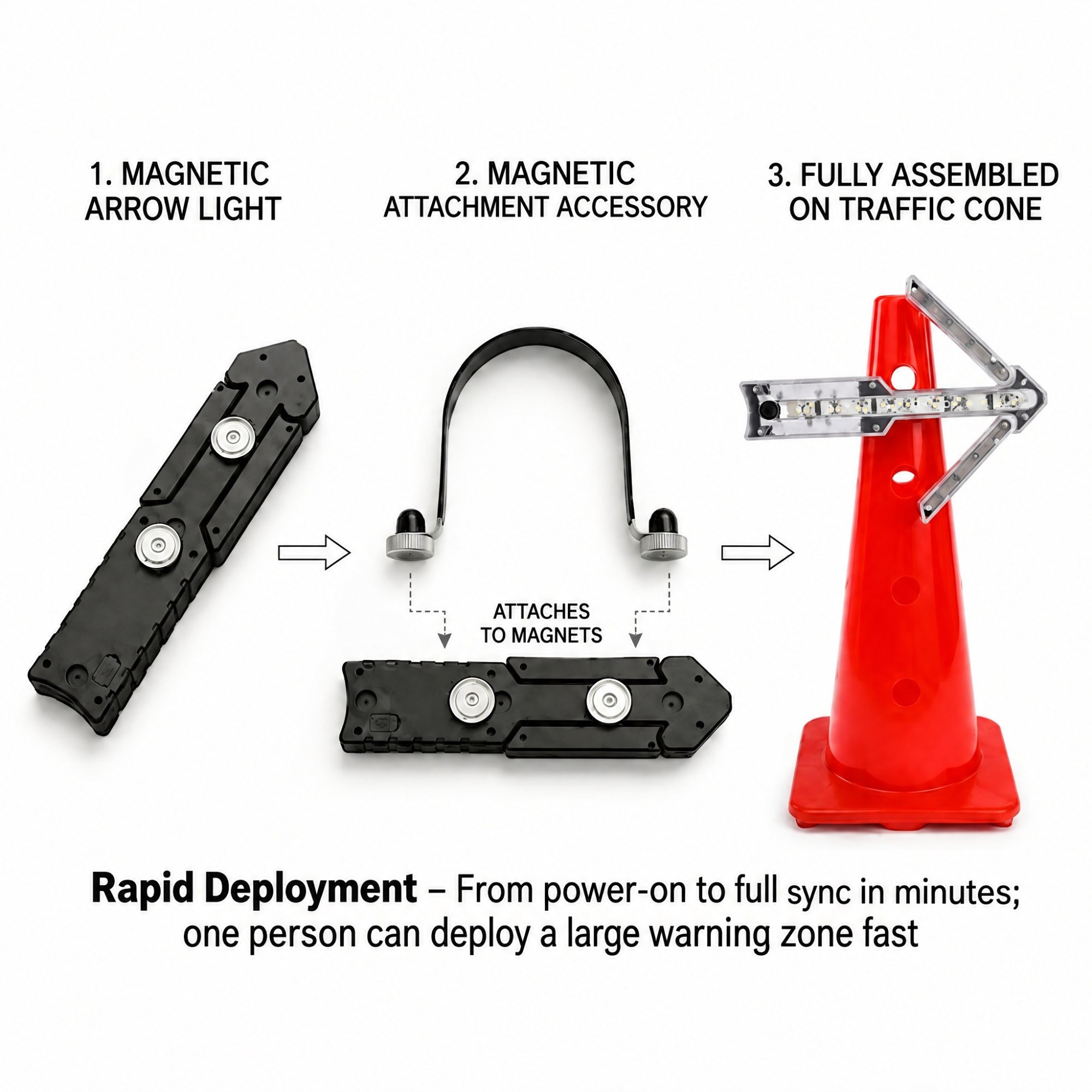

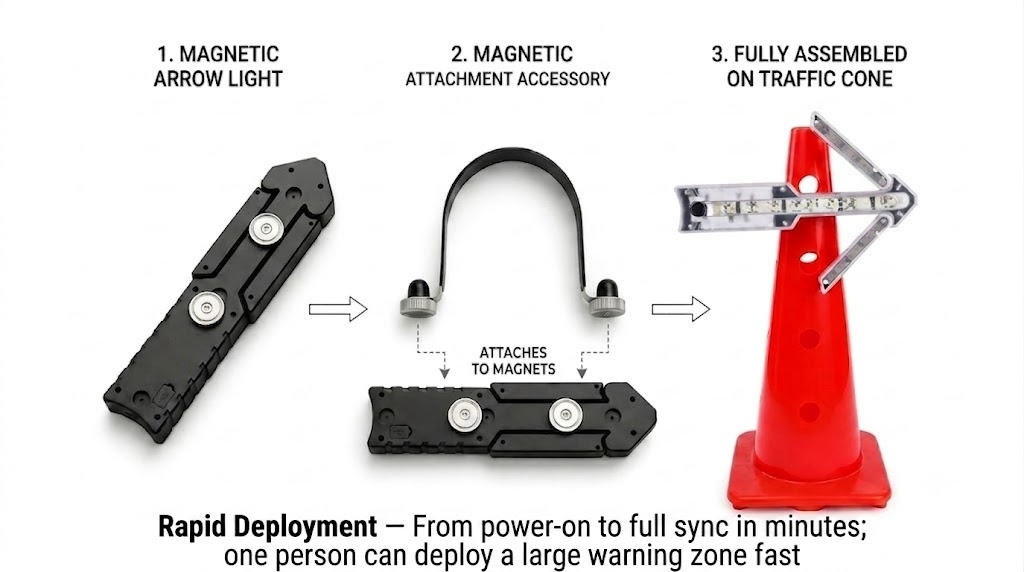

Magnetic arrow light, magnetic attachment accessory and the fully assembled arrow light on a traffic cone

Chasing Mode & Multi-Light Expansion

Chasing mode Every 6 lights automatically form one chasing unit. The 7th light starts a new unit (Group 2), and so on for each additional group of 6.
Fast Flash / Slow Flash / Steady All connected lights operate together as a single synchronized group. The 7th light and any additional lights stay synchronized with the first 6.
Number of lights No limit on the number of lights synchronized in Fast Flash, Slow Flash and Steady modes.
Adding lights Each newly added light joins the pairing process and the sync group once powered on. The operating method is the same as for a standard set.

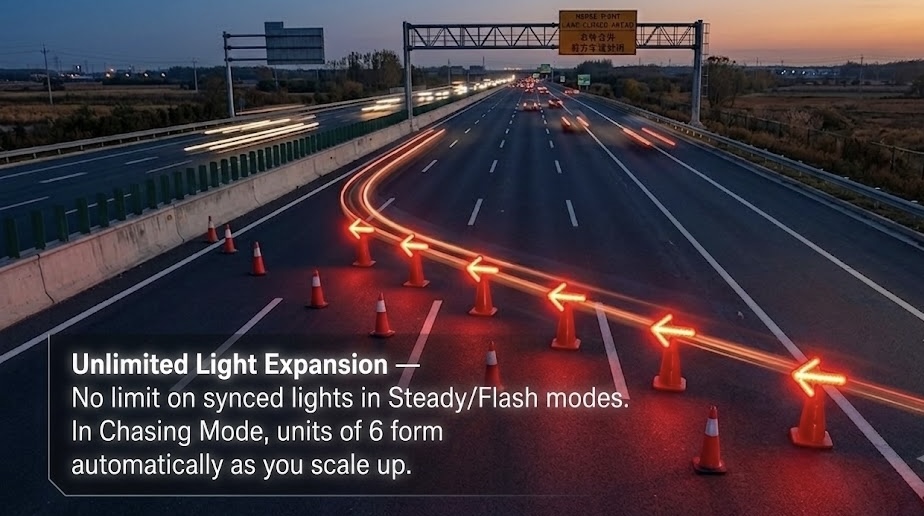

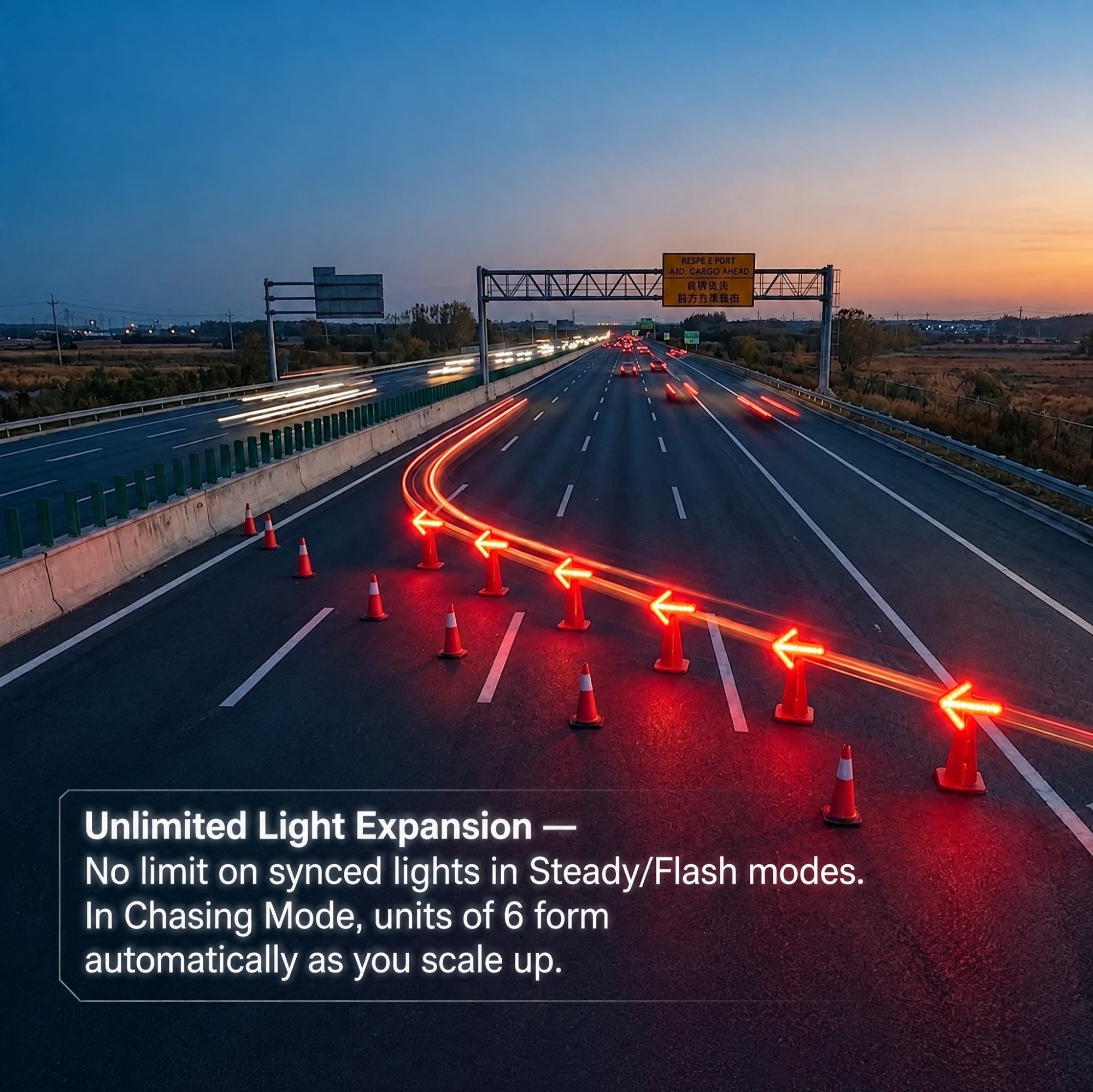

Chasing LED arrow lights on traffic cones guiding merge direction on a night highway

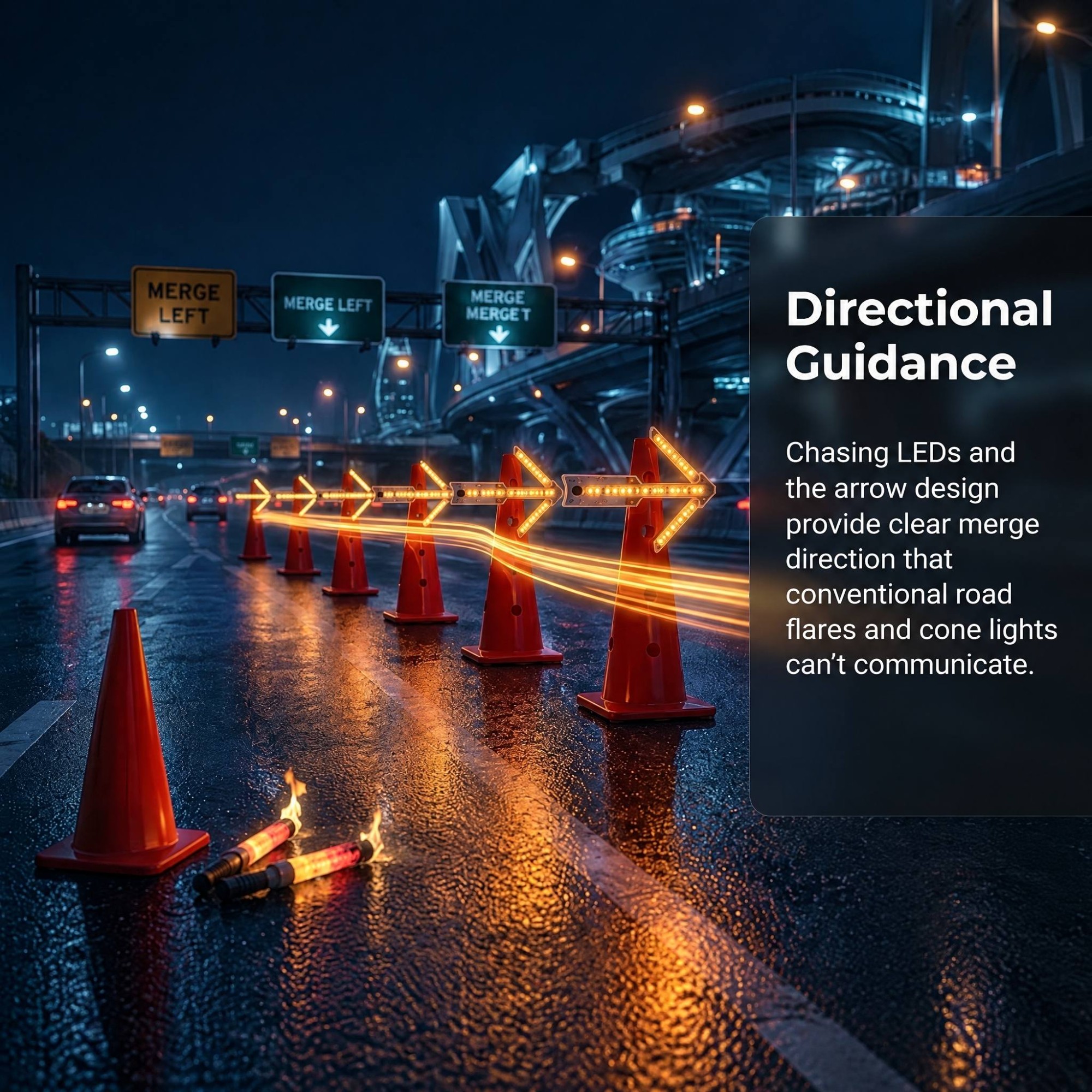

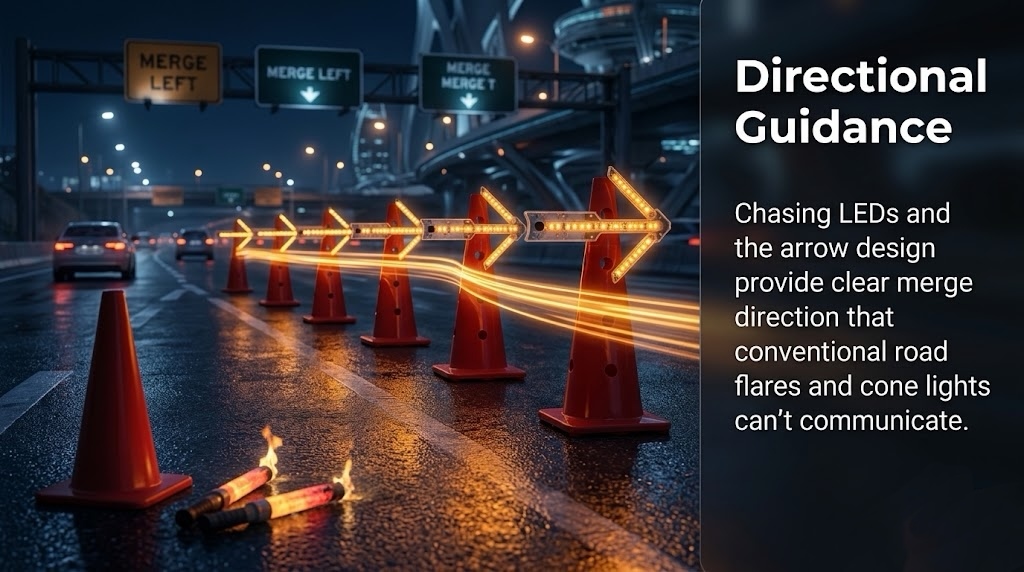

Synced LED arrow lights on traffic cones forming a chasing line along a highway lane closure at dusk

Specifications

Material ABS, PC
LED 32 pcs LED, 16W
Single light size 290 × 80 × 35 mm (11.4 × 3.1 × 1.4 in)
Weight 500 g (1.1 lb) per arrow light | 5.15 kg (11.4 lb) per full set with accessories
Battery 3.7V, 4000mAh rechargeable lithium battery (per light)
Input DC 5V
Control Press button
Charging indicator Red while charging, blue when fully charged
Light modes Chasing / Fast Flash / Slow Flash / Steady
Accessories 6 mounting hooks, 1 charger
Carton size 41.3 × 38.5 × 10.5 cm (16.3 × 15.2 × 4.1 in)

Charging & Care

Option A – AC wall charger (included) Connect the charging cable to the charging port on the light, then plug the AC adapter into a wall outlet. The indicator is red while charging and turns blue when the battery is fully charged.
Option B – DC car charger (optional accessory) Connect the charging cable to the light and plug the car charger into the vehicle 12V/24V power outlet. The indicator works the same way.
Charger Use only the included or manufacturer-approved charger. Charging input is DC 5V with either charger.
Before first use Charge fully before first use.
Safety Keep the charging port dry and do not charge the light while wet or in rain. Avoid extreme heat, open flame and direct sunlight while charging. Do not disassemble, puncture or impact the battery. Keep out of reach of children when unattended.
Maintenance and storage Wipe the housing with a soft, dry cloth, with no solvents or abrasive cleaners. Store the lights, hooks and charger in a cool, dry place. For long storage, charge the battery to roughly 50% first.

Application Scenarios

Road Construction & Work Zones
Guide vehicles around work zones with a synchronized directional line.
Lane Closures & Diversions
Show approaching drivers which way to merge across several lights.
Police & Traffic Control
Support temporary closures and detours at incident scenes.
Roadside Breakdown & Emergency
Mark roadside incidents clearly at night for approaching traffic.
Tow, Utility & Fleet Vehicles
Keep one case on the vehicle, ready to deploy.
Events & Parking Management
Provide directional signaling in dark or large open areas.
Complete your road safety setup
LED Arrow Warning Light – single arrow light for lane closures and diversions →
8 Pack Auto Sync Amber Road Flares – for vehicle or ground deployment →
LED Traffic Cone Ring Light – for fixed construction-zone warning →

Customization Options

Logo Branding
Your logo on the lights and the carry case.
Packaging & Manual
Custom packaging and branded instruction manual.
LED Color & Flash Patterns
Contact us for LED color and flash pattern options.
OEM & ODM
Design support and branding customization for distributors and brand partners.

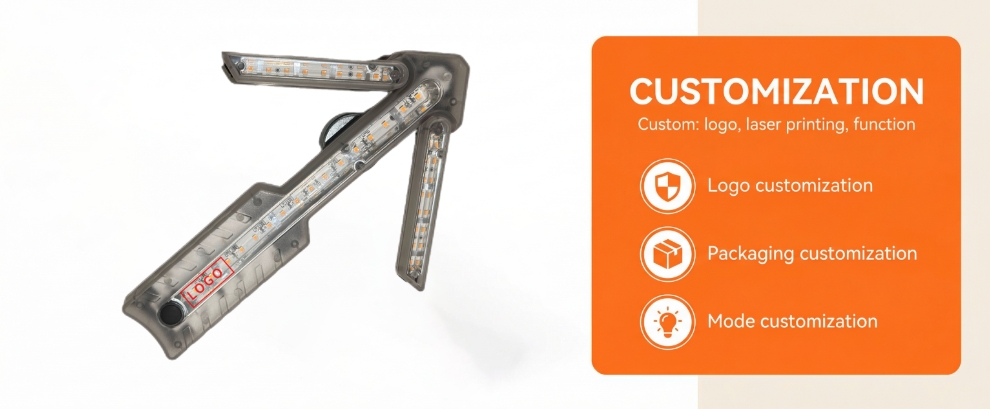

OEM and ODM customization services for LED warning lights

Why Choose Us

Factory Direct, 10+ Years of Experience
We manufacture LED road safety and warning lights ourselves, so you get factory pricing and direct communication with the production team.
Whole-Set Control
Press any light to start the set or change the mode for every light at once.
Scalable Sync
Add lights to the set and they join the sync group automatically, with chasing units of 6.
Quality Inspection
100% inspection before shipment.
OEM / ODM Friendly
Branding and packaging customization for distributors and brand partners.

Shipping & Payment

Shipping DHL, FedEx, UPS or sea freight, depending on destination and quantity
Port Ningbo, China
Payment T/T, L/C, PayPal, Western Union

FAQ

Q1What is included in the SYNC arrow light kit?
The kit includes arrow lights with a carry case, 6 mounting hooks and 1 AC charger. A DC car charger is available as an optional accessory.
Q2How do I power on and pair the lights?
Press and hold the button on each light for 4–5 seconds. Each light registers its position in the sync order by the order it was powered on. Once all lights are on, pairing starts automatically and takes about 2 minutes. When all lights flash off briefly at the same time, pairing is finished.
Q3How do I control the whole set?
After pairing, briefly press the button on any light to turn the entire set on in sync. Press again to switch the flash mode for the whole group. Press to go to OFF mode, and the set powers off completely after 1 minute without further action. The sync order resets when the lights are powered off.
Q4What lighting modes are available?
Chasing, Fast Flash, Slow Flash and Steady. The mode applies to every light in the set at the same time.
Q5How many lights can I sync together?
In Fast Flash, Slow Flash and Steady modes there is no limit. In Chasing mode every 6 lights form one chasing unit, and the 7th light starts a new unit. Added lights join the pairing and sync group automatically when powered on.
Q6How do I mount a light on a traffic cone?
Attach the magnetic attachment hook to the magnets on the arrow light, then fit the assembled light onto the cone. Six mounting hooks are included.
Q7How do I charge the lights?
Each light charges through DC 5V input. Use the included AC wall charger, or the optional DC car charger in a 12V/24V outlet. The indicator is red while charging and blue when fully charged. Use only the included or manufacturer-approved charger, and charge fully before first use.
Q8How should I store the lights?
Store the lights, hooks and charger in a cool, dry place. For long storage, charge the battery to roughly 50% first. Wipe the housing with a soft, dry cloth and avoid solvents.
Q9What is the difference between this kit and the single arrow light?
The single LED arrow warning light is a standalone unit. The SYNC kit pairs multiple arrow lights automatically so one button controls the whole set, and adds a carry case and mounting hooks for traffic cones.
Q10Is OEM/ODM available?
Yes. Logo, packaging and manual branding are available. Contact us for MOQ, samples and lead time.

Company Profile

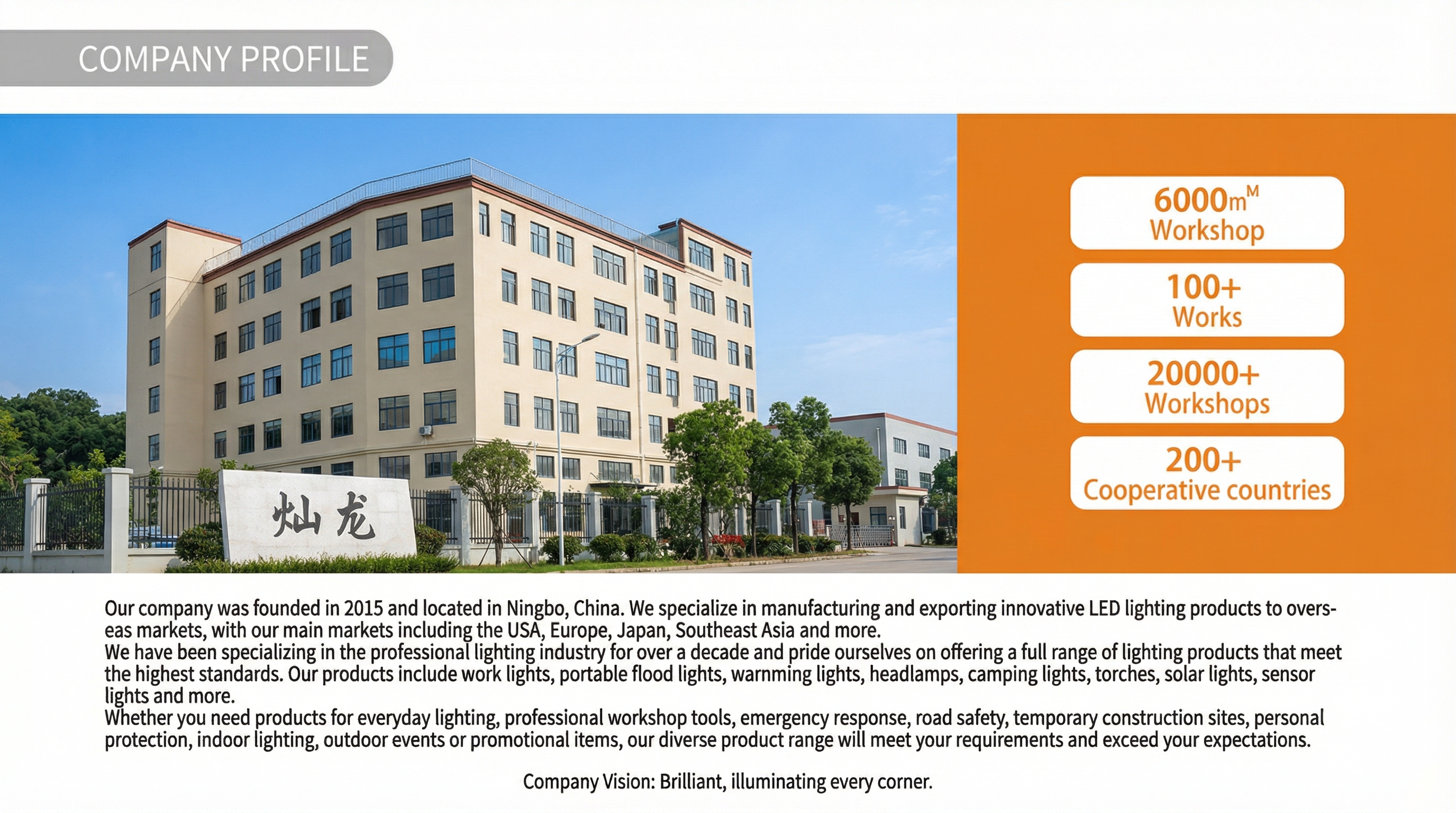

Factory production workshop for Superflare LED warning lights
